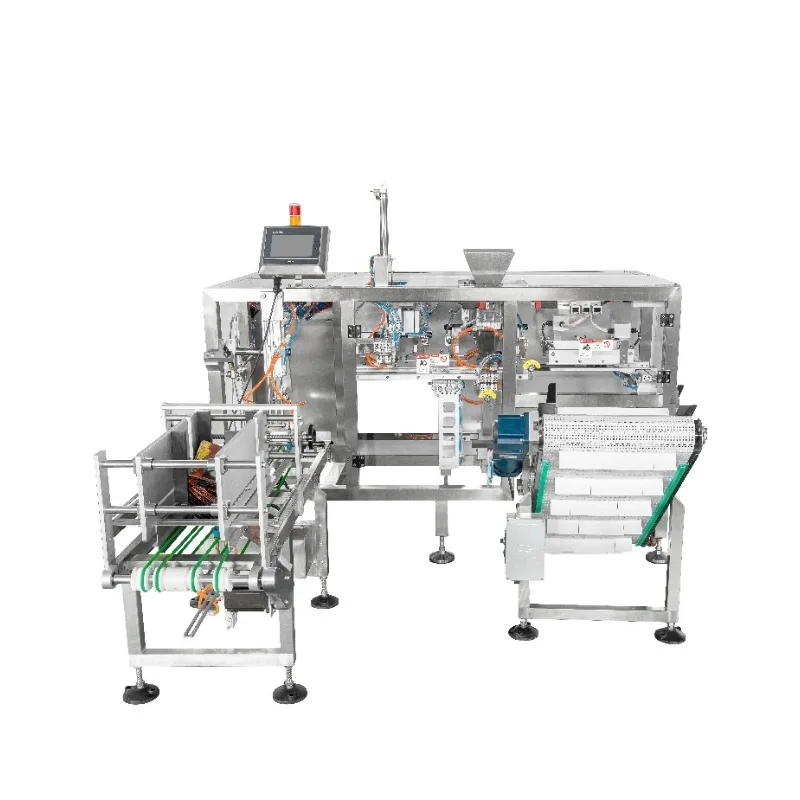

Horizontal Four-Station Doypack Filling & Sealing Machine

The Horizontal Linear Style Pre-made Bag Pick-Fill-Seal Packaging Machine is an advanced automated packaging device that can handle various tasks involved in packaging a product into a bag or pouch. From picking up the bag, filling it with the product, and sealing it securely, and with the 4-station, this machinery is designed to perform all these functions efficiently.

This machine is predominantly used in various industries like food, beverage, pharmaceuticals, pet food, etc.

4-station increase the filling and packaging efficiency
Servo Motor Driven, automatically adjust bag width
Prevent blanking and wastage of packaging bags.
Sanitary design with SUS304 for the main body
Flexible for bags in different types and size
PLC & 7-inch touch screen for easy operation
Auto troubleshooting
Safety design: safety door device and alarm function

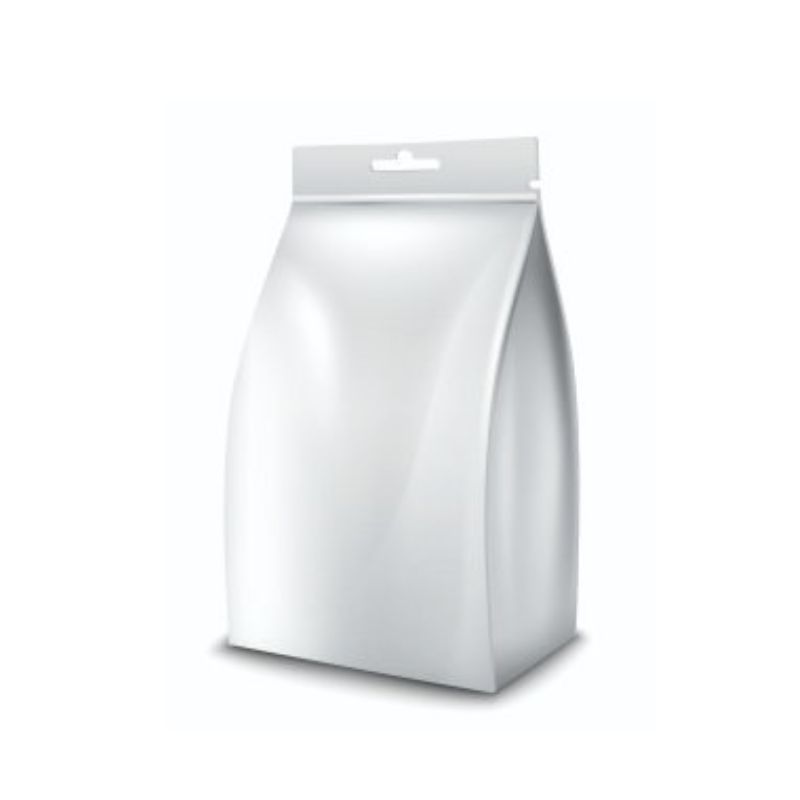

Suitable for the Mainly Type of Bags

Previous slide

Next slide

Specifications

Model: YDP-2-300/2-450
Bag Width(mm): 100~300/250-450
Bag Length(mm): 100~350/250-500
Product Weight: ≤2kg/≤5kg
Max. Speed: 10-20PPM/10-15PPM
Pouch Type: 3-side seal pouch, standup pouch, zip-lock pouch, flat bottom pouch, gusset pouch, spout pouch
Control System: PLC and 7-inch Touch Screen
Air Pressure: 7.0CFM@80 PSI
Power Supply: AC220V±10% 50Hz(60Hz) 1 Phase
